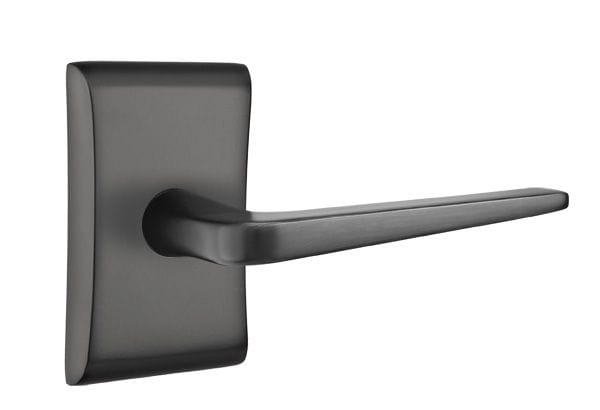

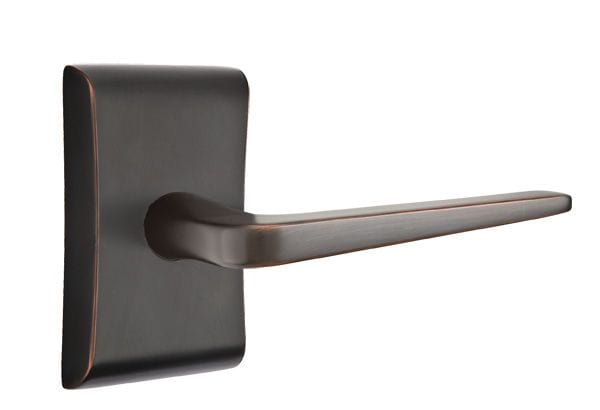

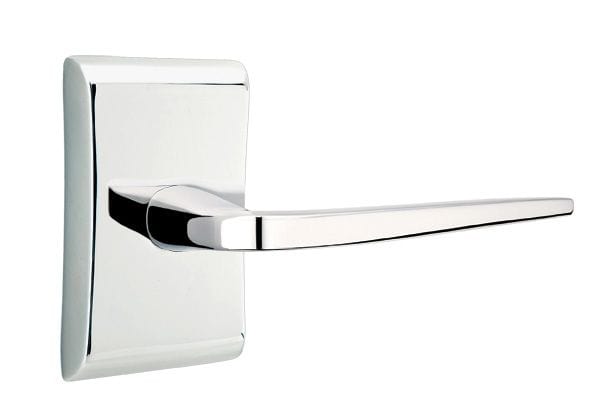

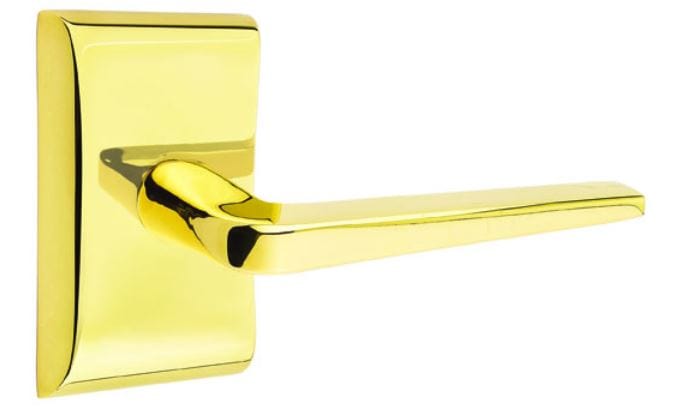

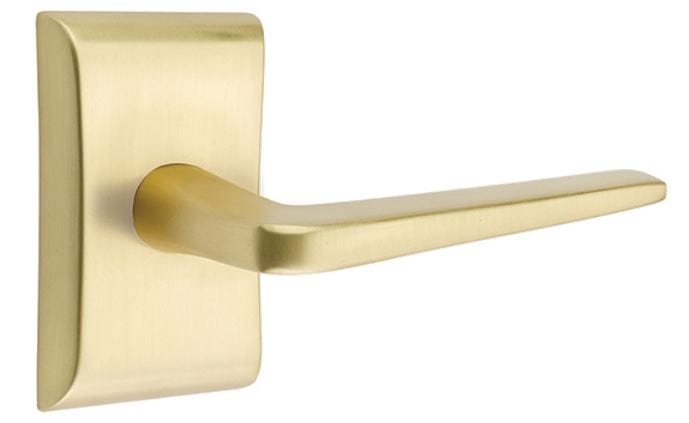

Athena Lever with Neos Rosette
Emtek Athena Lever with Neos Rosette
Experience the timeless elegance of the Athena Lever with Neos Rosette, featuring a modern style lever with a selection of finishes to suit any modern aesthetic. Crafted from the solid brass and with an array of functions such as passage, privacy, full and half dummy, this lever ensures a refined, luxurious look. Available with a standard 2 3/8" backset latch, exposed screws, square latch face and strike, or the CF version which comes with a 28 degree latch and concealed screws. The Athena Lever with Neos Rosette is a must-have for the ultimate luxe experience.
Handing Help
Keyed entry - Stand outside the home and locate the hinges. If they are on the left hand side then that will require a left handed lever. If the hinges are on the right hand side then that will require a right handed lever.
Pass/Privacy - Stand outside the room with the door you need handing. If the hinges are on the left hand side then that will be a left handed door. If the hinges are on teh right hand side then that is a right handed door. For example, if you are needing a lever for your bedroom, stand in the hallway or outside the bedrooom and look at the hinges. If you are needing a bathroom door then stand outside the bathroom and check hinge location.
Full Dummy - Stand outside the door and locate the hinges. If they are on the left then that is a left handed door. If hinges are on the right then that is a right handed door.
Half Dummy - Stand outside the room that and if the hinges are on the left hand side that is a left handed door. If they are on the right then that is a right hand door. If you are needing to put a half dummy on the interior side of the door then located the hinges from that side. If they are on the left then that will need a left handed lever. If the hinges are on the right then that is a right hand.
Functions
Hall/Closet (Passage) - Levers free on both sides - Normally used on hallway and closet
Bed/Bath (Privacy) - Levers are locked/unlocked from inside by push button or outside by emergency key.
Full Dummy - Levers on both sides of the door are stationary with no latch.Half Dummy - Lever on one side of the door and is stationary with no latch.
Features
Solid brass construction
Standard latch is for 2-3/8 in. backset.
Specify 2-3/4 in. backset if required in the order notes.
Standard latch and strike is square face.
Specify radius if required in the order notes.
Fits any door between 1-3/8 in. to 2 in. thick with a 2-1/8 in. bore standard door prep.
If door is thicker than 2" - specify in the order notes.
Standard knob sets come with a 60 degree rotation latch, interior trim with exposed screws, and require handing.
Add Optional 28 degree rotation latch available here for each Standard lever set needed.
CF Version includes a 28 degree rotation latch, interior trim with concealed screws, and reversible levers.
Included in the box
Passage and privacy functions come with levers and rosettes for each side of the door along with a strike, latch, faceplates, and mounting hardware.
Full Dummy function comes with levers and rosettes for each side of the door along with mounting hardware.
Half Dummy fucntion comes with one lever, rosette, and mounting hardware for one side of the door. These are surface mounted to the door.
Installation instructions
